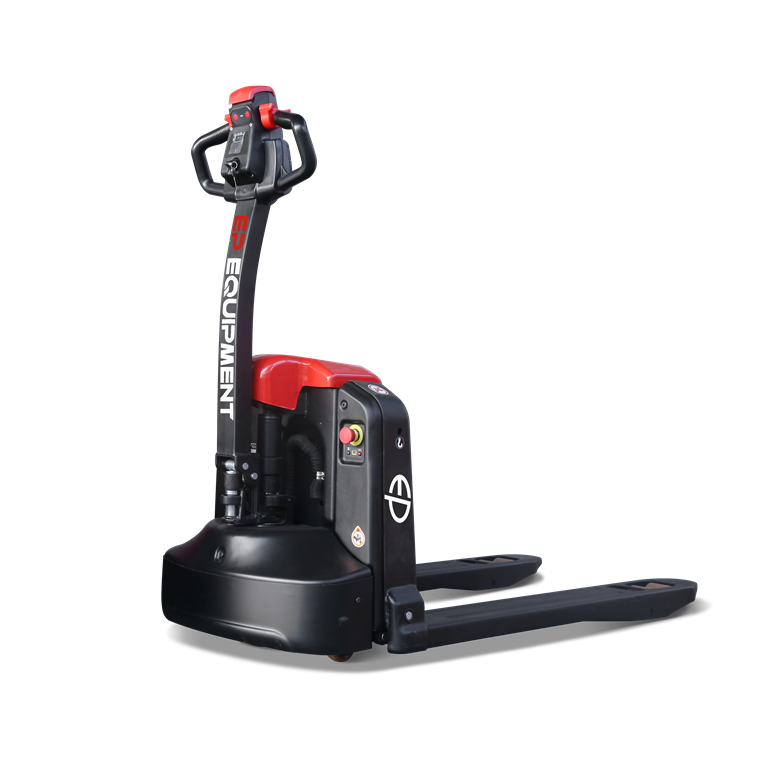

1.8T Powered Pallet Truck
Optimized structure, easy operation
The metal protective cover of battery can be flipped over, which can effectively protect the battery;
The battery has simple cover with two combination modes, it can prevent the battery from plugging and unplugging at will.
Safe
The truck uses the second generation drive technology and brushless DC motor. There is no need to replace the carbon brush and the drive is more powerful. Its max. Gradeability can reach 10% for the high power version.
New plug-in & out battery design
On-board charger with plug-in&out battery to satisfy different working condition.
Fast charging can be optionally equipped with. Li-ion battery developed by EP is equipped with CAN and BMS, which is more convenient to use.
Rigorous design and convenient maintenance
Floating battery cartridge to protect battery contact pins.
- Lift Height: 115mm
- Capacity: 1800kg
- Lowered Height: 80mm
- Fork Dims: 1150 x 150 x 50mm
- Width over forks: 540mm - (685mm option also available please enquire for more info)
- Ground Clearance: 30mm
- Aisle width for pallets 1000 x 1200mm crossways: 2094
- Aisle width for pallets 800 x 1200mm length ways: 2146
- Turning Radius: 1330mm
- Drive motor rating S2 60 min: 0.9Kw
- Lift motor rating at S3 15%: 0.8Kw
- The maximum allowed size battery: 270 x 110 x 440mm
- Battery voltage/nominal capacity K5: 48/20 (30 option please enquire for more info)
