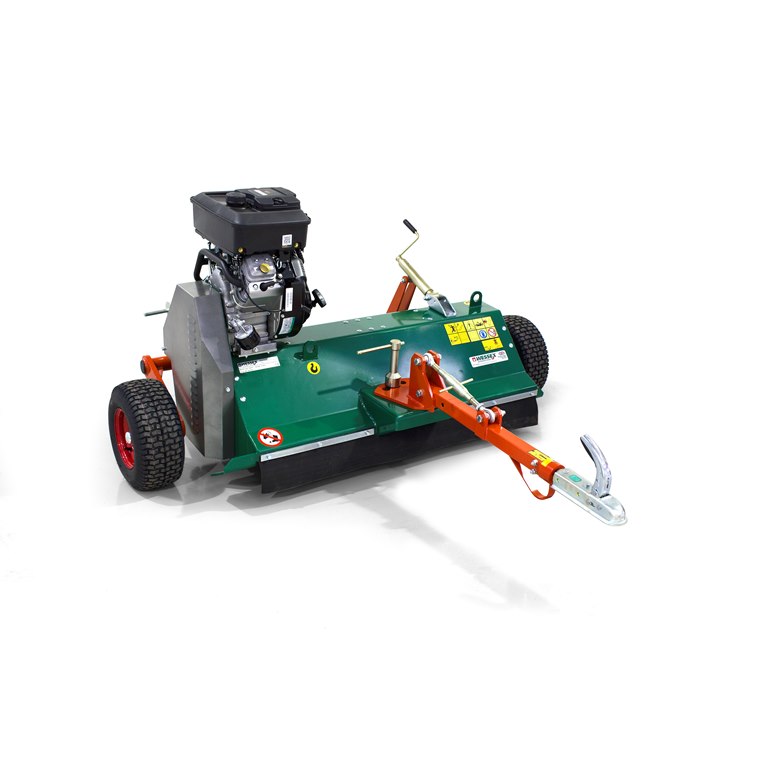

ATV Flail Mower

The Wessex AF SERIES FLAIL MOWERS, in 1.2 and 1.6m working widths, have been developed to meet the needs of contractors, farmers and estate owners. They are well suited for controlling dense vegetation, i.e. brambles, bracken and long grass and for the maintenance of forestry and woodland areas.

The manual clutch and three high torque belts allows the Wessex AF flail mower to perform in arduous conditions without the inherent overheating problems associated with a centrifugal clutch.

REAR WHEEL OPTION

Required if the machine is to cut close to fences and borders, or if the overall width is critical due to narrow access. The rear wheel option is available on the 1.2m version. In this configuration significant weight is transferred onto the drawbar, therefore the user must check the drawbar capacity of the towing vehicle. When fitted with rear wheels, the AF has a screw jack on the drawbar to aid connecting to the towing vehicle.

FLOTATION TYRES

Machines with side wheels also have the option of 22 x 11-8 flotation tyres as an alternative to the standard grass tyres. Ideal for working in boggy and low lying areas, the flotation tyres allow an ATV and a Wessex flail to operate in areas inaccessible to a tractor.

Working width 1.2m

Overall width c/w side wheels 1.83m

Overall width c/w rear/4 wheels 1.46m

Cutting height range 10-160mm

Approximate weight c/w side wheels 280kg

No. flails (pairs) 32
