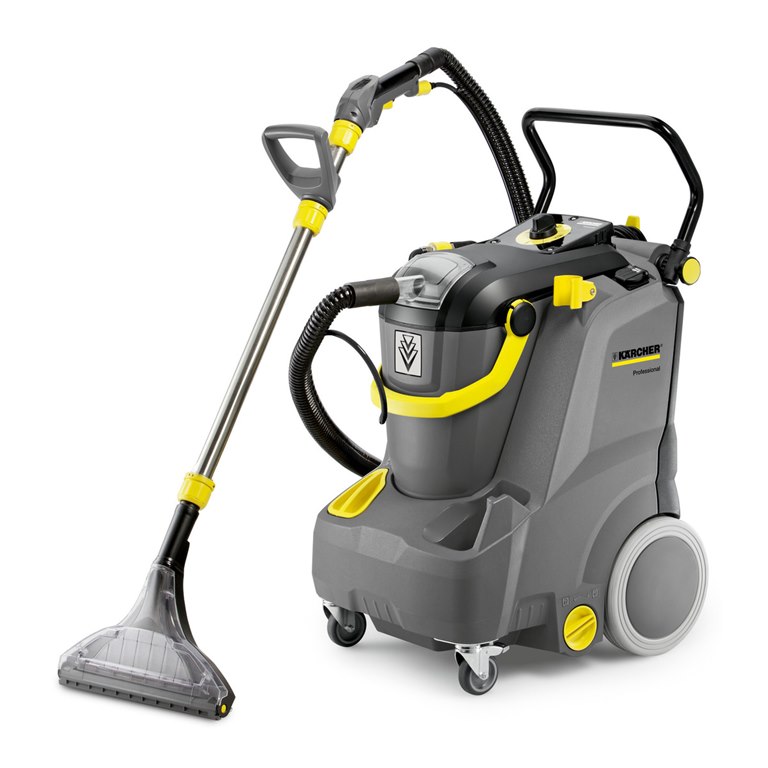

Spray-extraction cleaner Puzzi 30/4 Spray Extraction

An X-Demo unit of Karcher™s latest addition, the Puzzi 30/4, takes cleaning to a whole new level of efficiency, ease and quality results. By implementing Karcher™s revolutionary flexible suction tool, the duel spray-extraction methods will enable you to deliver a quality clean to your upholstery whilst seamlessly drying it ready for use at the very same time.

The new Puzzi 30/4 leaves minimal mess after cleaning, with only 9% of residual moisture left over. This leaves carpets and upholstery dry almost instantly, preparing them for use shortly after cleaning and avoiding the possibility of resoiling.

The compact and efficient design of the Puzzi 30/4 enabled the unit to be transported quickly, with ease. The ergonomic design puts not stress on your back when carrying it from one job to another. The easy-to-remove refillable waste container makes getting rid of dirt an easy, efficient and seamless process.

The Puzzi 30/4 is one of the quietest units designed and produced by Karcher. With an output as low as 66db, the Puzzi 30/4 can be used during business hours causing no inconvenience to your employee™s or customers. This makes it ideal for use in hotels, restaurants or offices. The low-noise emissions make for longer working periods as it has a smaller effect on the operator.

To protect the operator from dirt, the dirty water tank™s handle is situated on the outside of the unit. The unit is easy to remove, minimising the chances of spillage when getting rid of waste. Even when the 30-litre water tank is full, the ergonomic design of the Karcher Puzzi 30/4 means it can still be transported easily. An integrated water level meter indicates the level of fresh water left in the tank.

X-Demo Machine - this machine has had light use for demo's

Specifications

Karcher Puzzi 30/4 Spray Extraction Product Information Sheet

Technical Data

• Max. area performance 60 - 75m²/h
• Air flow 74l/s
• Vacuum 254 / 25.4mbar/kPa
• Spray rate 3l/min
• Spray pressure 4bar
• Fresh / waste water tank 30 - 15l
• Power rating fan 1200W
• Power rating, pump 70W
• Voltage 220 - 240V
• Frequency 50 - 60Hz
• Weight 26kg
• Dimensions (L x W x H) 590 x 470 x 783mm

Equipment

• 4m Spray suction hose with integral water feed
• Power outlet for power brush, PW 30
• Additional handle
• Wide floor nozzle with flexible suction lip
• Hand tool
