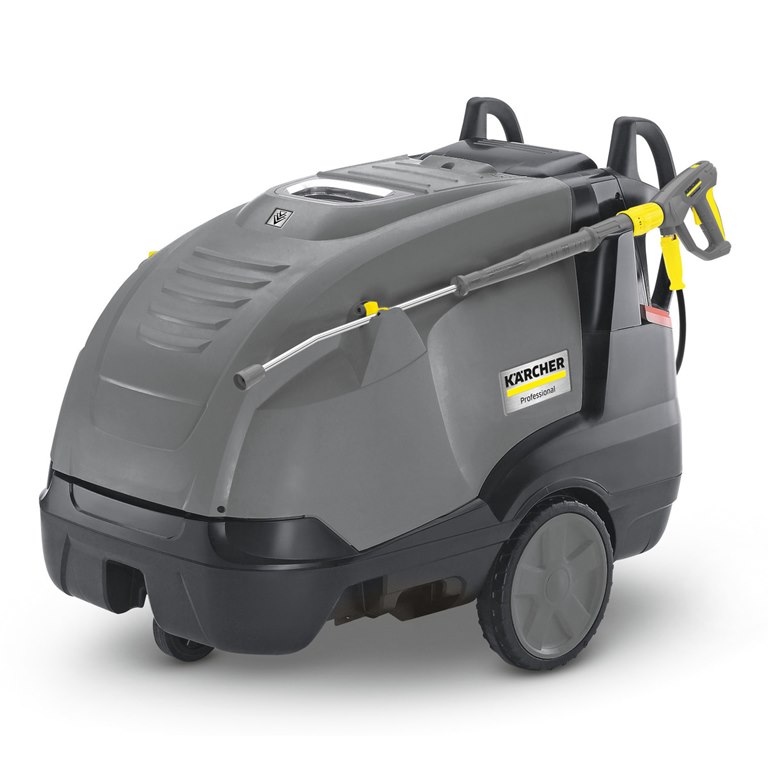

High-Pressure Washer HDS 10/20-4 M.
The hot water pressure washers of the new middle- and super-class convince with their 5 main features. 1. Environmental protection Greater efficiency with the new ECO mode, service switch for controlling water hardness, turbo fan, precision detergent metering, optimized burner technology and a high-efficiency pump. 2. Cleaning performance Highly efficient cleaning is guaranteed by patented nozzle technology, ceramic pistons, turbo fan as well as increased pump efficiency. Accessories are optimized for specific applications and designed to exactly suit customer requirements. 3. Mobility The mobility concept features two casters, large rubber-tyred wheels, ergonomic handles, lifting points for handling with a forklift, lashing rings and a recessed tread for tilting the machine to guarantee maximum manoeuvrability. 4. Reliability Guaranteed by flue gas monitoring, a corrosion-proof, flexurally stiff, robust chassis, machine protector system, three-piston axial pump with ceramic pistons, heat resistant flue outlet, and much more. 5. Service friendliness Easy access to all components that require servicing and a service switch to call up operating data at any time for troubleshooting.
Features and benefits
Efficiency
In the Eco setting the unit operates in the most economical temperature range (60°C) with full water flow. Burner cycles are optimized to reduce fuel consumption by up to 20% compared to full-load operation.Maximum efficiency
Highly efficient burner technology. 4-pole electric motor with 3 piston axial pump. Water-cooled motor for a high level of performance and durability.Operational reliability
The large, integrated fine-mesh water filter reliably protects the high-pressure pump against dirt particles. An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C. The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.Storage
- Safe and ample storage for protective gear, accessories, and cleaning agents.
- Storage hooks for power cord and high-pressure hose.
Mobility concept
- "Jogger" design with large rubber tire wheels and swivel castors.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.
- At last – work without getting tired: the EASY!Force high-pressure gun.
- EASY!Lock quick-release locks: durable and robust. And five times faster than screws.
Specifications
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow Rate (l/h) | 500 - 1000 |
| Operating pressure (bar/MPa) | 30 - 200 / 3 - 20 |
| Temperature (supply 12°C) (°C) | min. 80 - max. 155 |
| Power rating (kW) | 7.8 |
| Consumption fuel oil (kg/h) | 6.4 |
| Heating oil consumption, eco!efficiency (kg/h) | 5.1 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 168 |
| Weight incl. packaging (kg) | 180 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Equipment
- Trigger gun: EASY!Force Advanced
- High-pressure hose: 10 m, Longlife
- Spray lance: 1050 mm
- Power nozzle
- ANTI!Twist
- Tanks for detergent, scale inhibitor, and fuel can be filled from the outside
- Control panel with indicator lamps
- Pressure switch control
- Pole reversing plug (three-phase)
- Electronic service control with LED display
- Two detergent tanks
- Dry running protection
