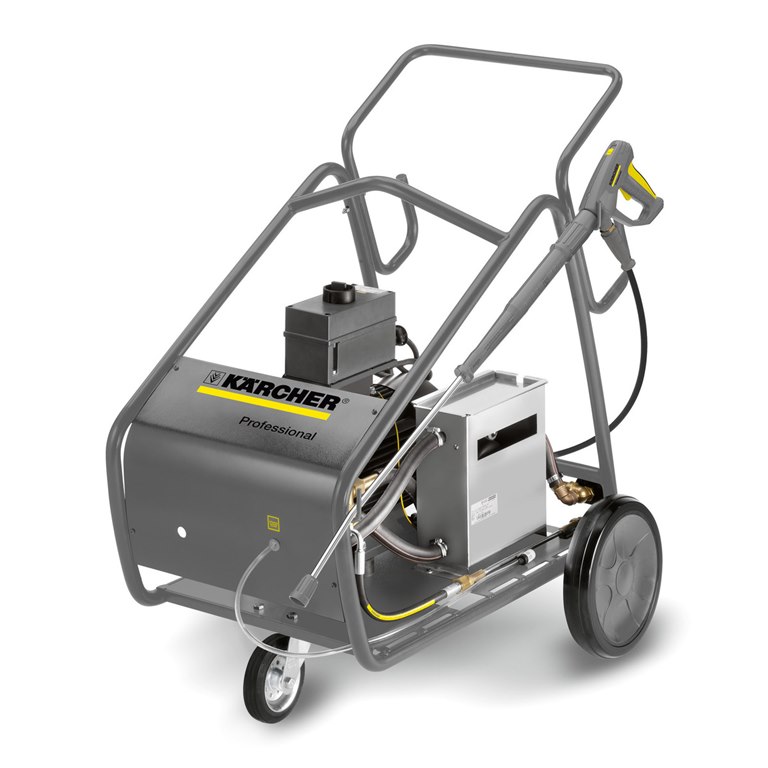

High pressure cleaner HD 10/16-4 Cage Ex (ATEX)
Product Code: 13539040
SKU: 1.353-904.0
£7,765.80 exc. VAT
Select Type
The Karcher HD 10/16-4 Cage Ex is designed specifically for use in potentially explosive environments.All accessories and technical features are designed to comply with explosion protection category II 2 G c T3. The electrically-conductive powder-coated frame provides robustness and enables lifting by crane, whilst all components are protected so that the surface temperature never exceeds 200°C. The machine provides water flow of 1000 litres per hour and 160 bar pressure, and the 4-pole 3-phase electric motor, crankshaft pump and ceramic pistons ensure a long service life.
Features and benefits
Powder-coated cage frame, conductive |
|
Explosion-proof design |
|
Specifications
Technical data
Current type (Ph) | 3 / 400 / 50 |
Flow rate (l/h) | 1000 |
Operating pressure (bar/MPa) | 160 / 16 |
Max. pressure (bar/MPa) | 220 / 22 |
Power rating (kW) | 5.5 |
Weight (kg) | 111 |
Dimensions (L x W x H) (mm) | 980 x 720 x 1100 |
Equipment
- High-pressure hose, 10 m
- Spray lance, 1050 mm
- Power nozzle
- Pressure switch control
- High pressure lance
