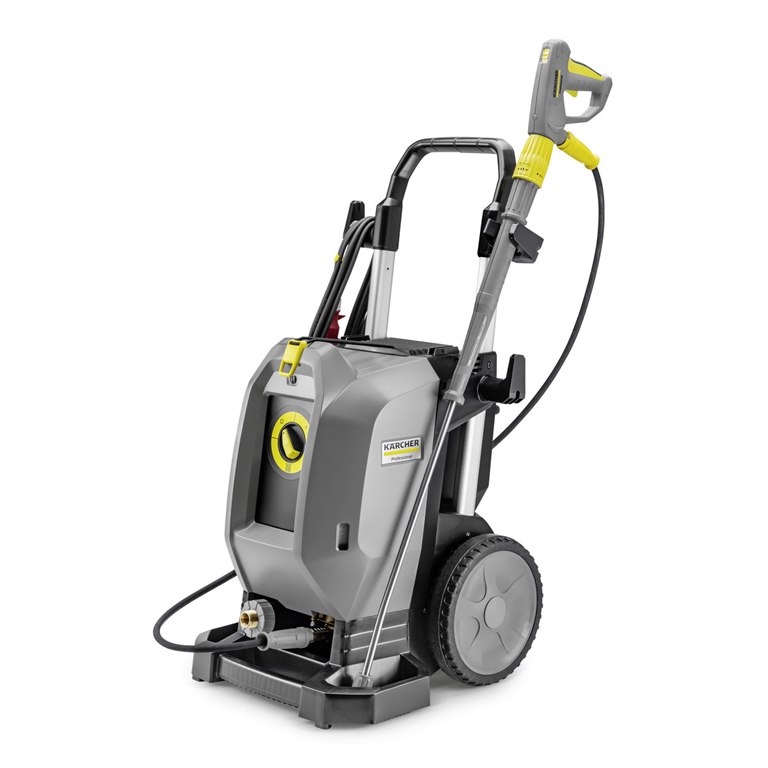

High Pressure Cleaner HD 9/20-4 S.
The HD 9/20-4 S cold water high-pressure cleaner is ideal for daily use in tough conditions. The finest materials guarantee top quality – and you can count on both from Kärcher. Inside the machine, a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head delivers powerful performance, complemented by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a light yet hard-wearing chassis, suitable for crane loading. For a compact design and maximum portability, the motor and pump unit is mounted vertically in an upright arrangement. In addition to this, it features accessory storage in the form of a stowage compartment and adjustable hooks. The HD 9/20-4 S takes ergonomic working to the next level. Thanks to the EASY!Force Advanced trigger gun, it can be operated effortlessly without any holding force, ably assisted by a rotating 1050-millimetre stainless steel lance. The Servo Control controller positioned between the trigger gun and lance can be used to adjust pressure and water volume.
Features and benefits
Compact upright design concept based on vertical arrangement of motor and pump unit
Small footprint and space-saving proportions. Easy to maneuver and transport. Maximum stability ensures a stable footing for the machine.4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs. High performance and high efficiency. With suction feature and up to 60 °C water temperature.Intelligently designed service concept facilitates quick operations on site
Swiveling pump head. Convenient oil fill level display and oil drain hole integrated in the chassis. Modular construction, comprising pump, motor, and control cabinet.Wide-ranging accessories with EASY!Lock
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- EASY!Force Advanced for fatigue-free work without any holding force.
- Rotating 1050 mm stainless steel lance.
Multiple storage spaces for accessories integrated into the machine
- Stowage compartment.
- Adjustable hooks, e.g. for storing a second lance or electric cable.
- Storage for a high-pressure hose.
Specifications
Technical data
| Current type (Ph/V/Hz) | 3 / 376 - 424 / 50 |
| Flow Rate (l/h) | 500 - 900 |
| Water feed temperature (°C) | 60 |
| Operating pressure (bar) | 50 - 200 |
| Max. Pressure (bar) | 250 |
| Power rating (kW) | 7 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water feed | 1″ |
| Weight (with accessories) (kg) | 59.9 |
| Weight incl. packaging (kg) | 69 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Equipment
- Trigger gun: EASY!Force Advanced
- Trigger gun with soft grip
- High-pressure hose: 10 m, Premium quality, ID 8, 315 bar
- Spray lance: 1050 mm
- Power nozzle
- 4-pole three-phase motor with air and water cooling
- Three piston axial pump: with stainless steel pistons
- Pressure switch control
- Integrated fine mesh water filter
- High-pressure lance
- Oil sight glass
- Servo Control
- Brass water inlet fitting
