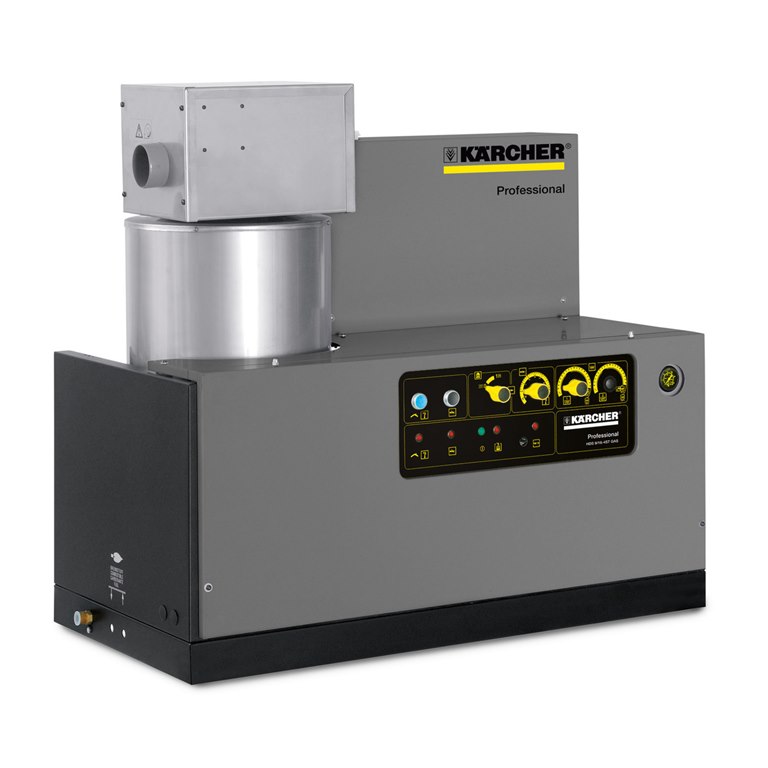

High pressure cleaner HDS 12/14-4 ST Gas LPG
Product Code: 12519020
SKU: 1.251-902.0
£9,717.75 exc. VAT
Select Type
High-pressure cleaning system which offers an extraordinary high level of safety with automatic pressure relief, flue gas temperature monitor, an innovative dry run cut-out in the float tank as well as an SDS hose which absorbs pressure surges. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.
Features and benefits
Water-cooled 4-pole electric motor (oil-heated)
- Long service life.
- Improved efficiency.
- Guaranteed quiet operation.
Burner technology (oil-heated)
- High heat output.
- Spiral heating coil for a compact design.
- Upright design prevents condensation and corrosion.
Specifications
Technical data
Current type (Ph/V/Hz) | 3 / 400 / 50 |
Flow Rate (l/h) | 600 - 1200 |
Operating pressure (bar/MPa) | 30 - 140 / 3 - 14 |
Temperature (supply 12°C) (°C) | max. 98 |
Power rating (kW) | 7.5 |
Water feed | 3/4″ |
number of simultaneous users | 1 |
Mobility | Stationary |
Fuse protection (A) | 16 |
Weight (with accessories) (kg) | 189.9 |
Weight incl. packaging (kg) | 200.9 |
Dimensions (L × W × H) (mm) | 1110 x 565 x 1080 |
Equipment
- SDS system
- System pressure relief
- Flame monitor
- Ready for Servo Control
- Ready for remote control
