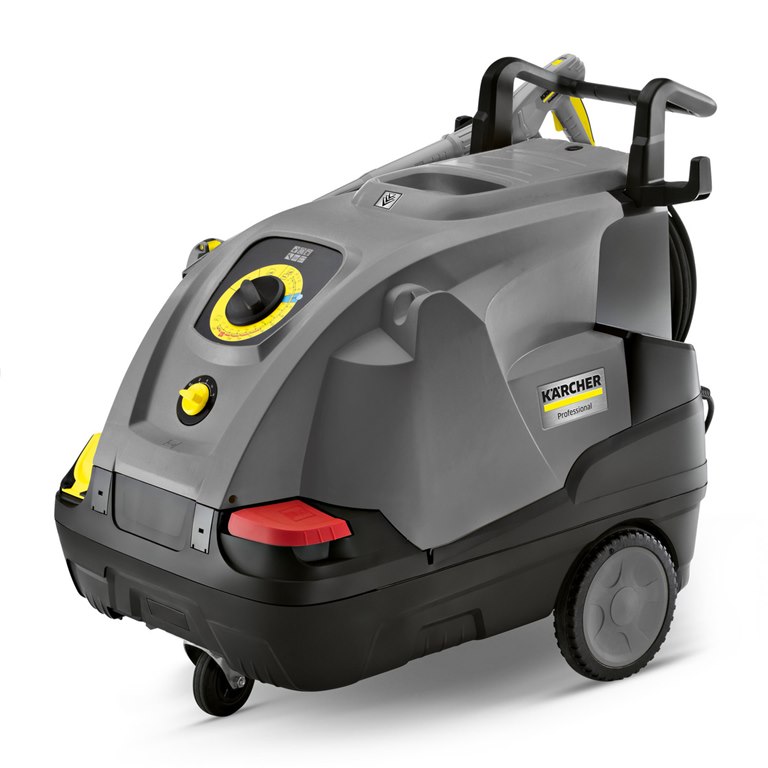

High-Pressure Washer HDS 7/16 CX.
The powerful 3-phase HDS 7/16 CX from the HDS compact class has an integrated hose reel including 15-meter high-pressure hose. In addition, the hot water high-pressure cleaner has a clever single-button operation as well as large wheels and a steering roller/castor which make handling and transport very easy for the user. Superior equipment and the extremely efficient and environment-friendly operation thanks to eco!efficiency mode characterise this machine. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. Tanks for cleaning agent and fuel are protected in the hard-wearing chassis that also permits tougher applications. Accessories, nozzles, and tools can be easily stowed in the practical storage compartments.
Features and benefits
Efficiency
eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods. Reduces fuel consumption and CO2 emissions by 20%. Precise detergent dosing unit with rinse function.Ease of use
Intuitive operation thanks to the large single-button selector switch. Large tank opening with a filling chute. Convenient system care bottle can be changed from the outside.Storage
Lockable accessory compartment for nozzles, tools, etc. Integrated hose reel with 15 m pressure hose for a large operating radius and effortless storage (CX versions). Integrated lance holder for transport.Reliability
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
- Large water filter protects the pump against damage.
- Water softening system protects the heating coil against calcification damage.
Portability
- "Jogger" design with large wheels and steering roller.
- Large integrated handles in the chassis.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
- Fatigue-free work at last: the EASY!Force high-pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Specifications
Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 270 - 660 |
| Working pressure (bar/MPa) | 30 - 160 / 3 - 16 |
| Temperature (for supply 12 °C) (°C) | max. 80 |
| Connected load (kW) | 4.7 |
| Consumption of heating oil or gas at full load (kg/h) | 4.1 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 3.3 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 111 |
| Weight incl. packaging (kg) | 119.8 |
| Dimensions (L x W x H) (mm) | 1215 x 650 x 920 |
Equipment
- Spray gun: EASY!Force Advanced
- High-pressure hose: 15 m, DN 6, 250 bar
- Spray lance: 1050 mm
- Power nozzle
- Soft Damping System (SDS)
- Integrated HD hose reel
- Pressure switch-off
- Integrated fuel and cleaning agent tank
