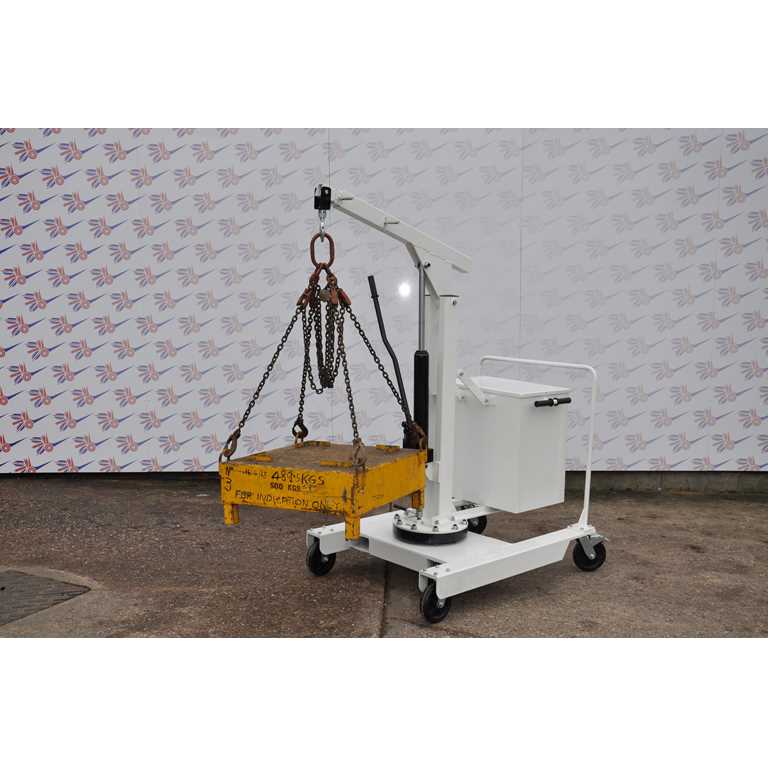

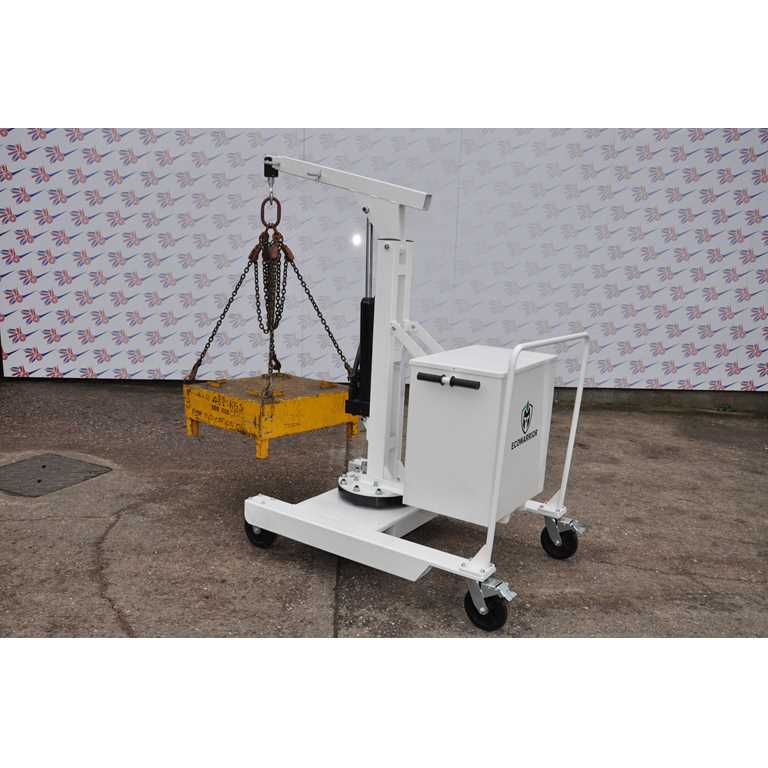

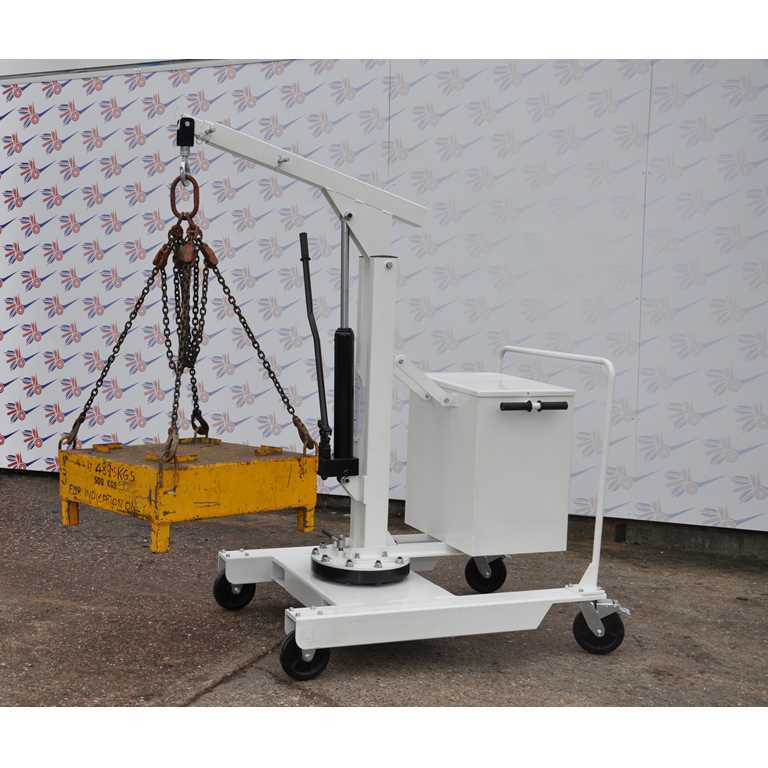

Warrior 550kg Manual Counterbalanced Crane with Rotating Jib
The built in ballast weight which counterbalances the crane jib is mounted on a precision engineered slewing ring which allows maximum accessibility.
It has a manually adjustable four position jib which allows flexibility of load handling.
Counterbalanced floor cranes with a high capacity slewing jib are the perfect solution for being able to modify layouts without constraints.
Manual Counterbalanced Crane with slewing jib
550kg capacity
360 degree pivoting arm allowing operation at any position you require
Light, double acting hand hydraulic pump unit
Swivel hook & adjustable knob
Block valve to prevent overloading
Extremely easy to manoeuvre due to minimal foot print area
Heavy duty design, tested 25% overload before delivery
Floor level minimum hook height
5 variable capacity settings
5 position jib
CE Marked
Basic Dimensions
Tank Capacity:- 1 Litre
Outreach with standard jib:- Position 1:- 1900mm adjustable position at 550kg capacity with
977mm turning radius
2:- 2160mm adjustable position at 450kg capacity with 1267mm turning radius
3:- 2260mm adjustable position at 350kg capacity with 1560mm turning radius
4:- 2450mm adjustable position at 250kg capacity with 1850mm turning radius
5:- 2600mm adjustable position at 150kg capacity with 2140mm turning radius
Overall Size:1400 x 985 x 1600mm
Wheel Diameter: 200mm
Balance Weight: 250kg
Net Weight:612kg
