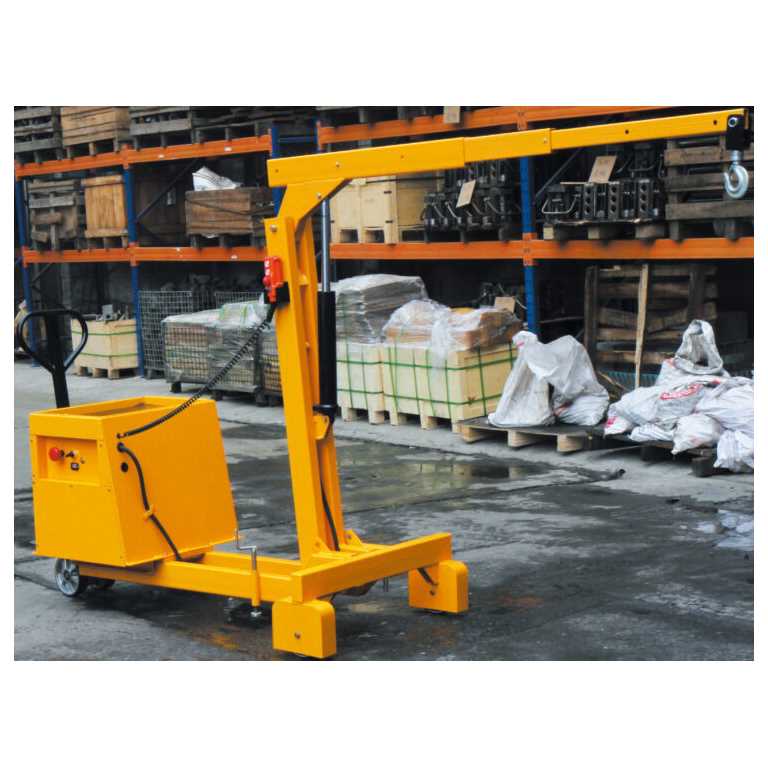

Semi Electric 550kg Counterbalanced Crane

The Warrior Heavy Duty Counterbalanced Semi Electric Workshop Crane is free standing with 5 variable capacity settings (maximum capacity available is 550kg) afforded by its 5 position telescopic jib and heavy duty swivel hook with safety catch.

Counterbalanced floor cranes are ideal for machine shops and other manufacturing environments where access to machinery is restricted by floor level objects.

Heavy duty counterbalanced crane
 Up to 550kg capacity
 Electric lifting and manual moving
 Heavy duty swivel hook with safety catch
 Pressure relief valve to prevent overloading
 Extremely easy to manoeuvre
 2600mm maximum lift height
 Floor level minimum hook height
 5 variable capacity settings
 5 position telescopic jib
 CE Marked
 Counterbalance allows total jib access ideal when loading millers, lathes and other machine tools

Supplied complete with counterbalance.

Dimensions:
Chassis Length – 1650mm
Chassis Width – 910mm
Overall Height – 1510mm (jib level)
Capacity at Jib position mm
550Kg at 925mm
400Kg at 1210mm
300Kg at 1500mm
220Kg at 1800mm
150Kg at 2080mm
Maximum capacity at full clear reach is 150Kg.
Battery:- 60Ah
Power/Voltage:- 0.8Kw/12V
