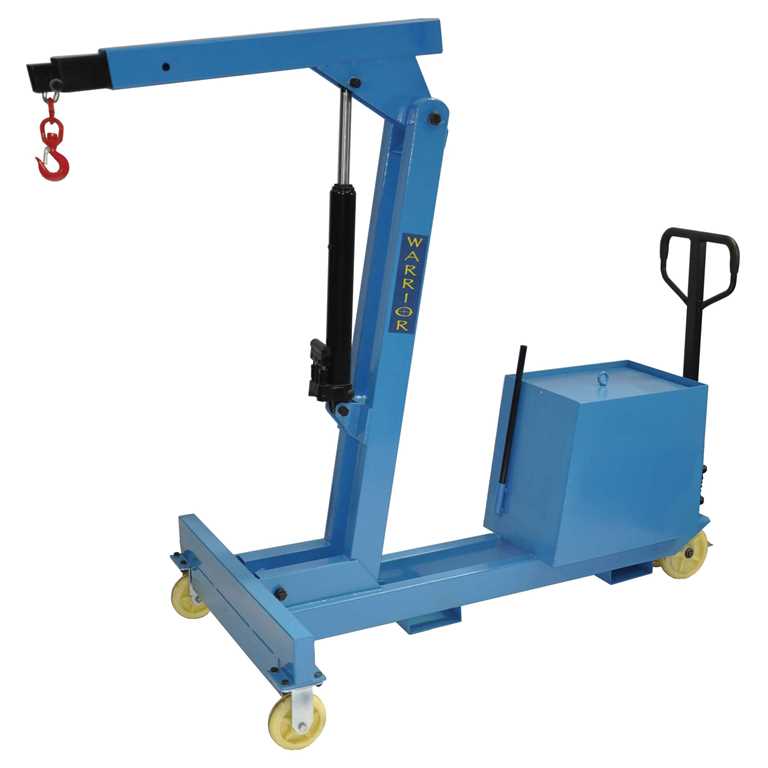

Warrior 550kg Manual Counterbalanced Crane

The WARRIOR Heavy Duty Counterbalanced Workshop Crane is free standing with 5 variable capacity settings (maximum capacity available is 550kg) afforded by its 5 position telescopic jib and heavy duty swivel hook with safety catch.

Counterbalanced floor cranes are ideal for machine shops and other manufacturing environments where access to machinery is restricted by floor level objects.

Heavy duty counterbalanced crane
Up to 550kg capacity
Double acting hand hydraulic pump unit
Heavy duty swivel hook with safety catch
Pressure relief valve to prevent overloading
Easy to manoeuvre
2900mm maximum lift height
Floor level minimum hook height
5 variable capacity settings
5 position telescopic jib
CE Marked
Counterbalance allows total jib access - ideal when loading millers, lathes and other machine tools

MODEL WARRIOR WRTSB550
Capacity at Minimum Jib: 550kg
Capacity at Jib position 2: 500kg
Capacity at Jib position 3: 450kg
Capacity at Jib position 4: 400kg
Capacity at Maximum Extent: 350kg
Overall Length: 2100mm
Overall Width: 1050mm
Overall Height: 1760mm
Overall Height Folded: 870mm
Net Weight: 500kg
