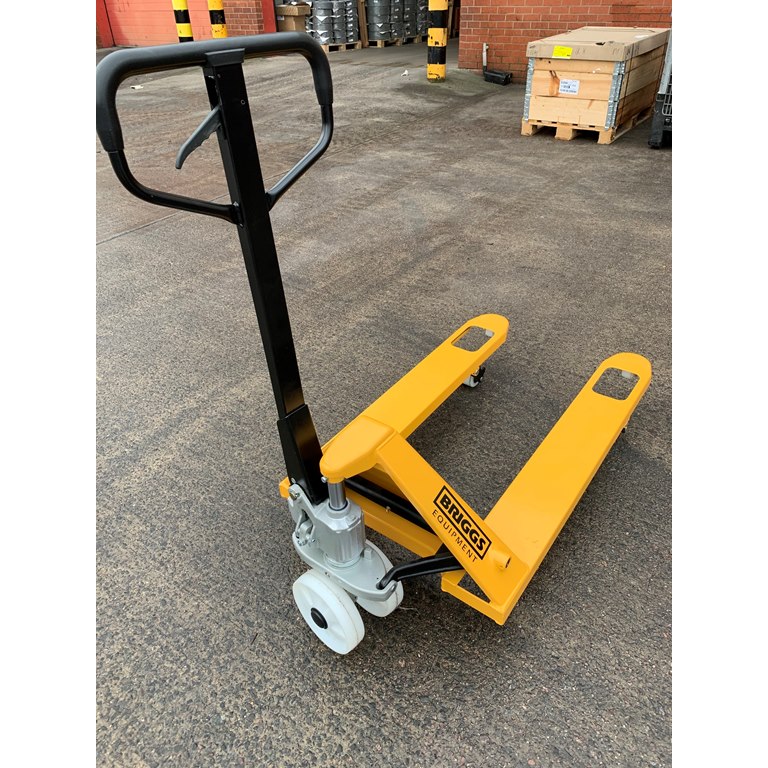

Hand Pallet Truck 685x1000mm

Other sizes and wheel specs available, please enquire for more information.

Type of control: Manual

Type of pallet truck: Standard

Load capacity (kg): 2500

Centre of gravity (mm): 500

Type of pump: Standard

Brake present: NO

Colour of the pallet truck: Yellow

RAL colour of the pallet truck: RAL1003 (SIGNAL YELLOW)

Minimum height (mm): 80

Lifting height (mm): 200

Maximum height (with handle) (mm): 1230

Total length of the pallet truck (mm): 1400

Length of the forks (mm): 1000

Control length (mm): 400

Centre distance (mm): 327

Thickness of the forks (mm): 48

Total width of the pallet truck (mm): 685

Width of the forks (mm): 160

Closed forks: NO

Width across the forks (mm): 685

Width between the forks (mm): 365

Minimum aisle width (mm): 1600

Number of fork wheels: 2

Material of the fork wheels: Nylon

Material of the steering wheel: Nylon

Material of the pallet truck: Steel

Material of the pump: Cold galvanized steel (casted)
