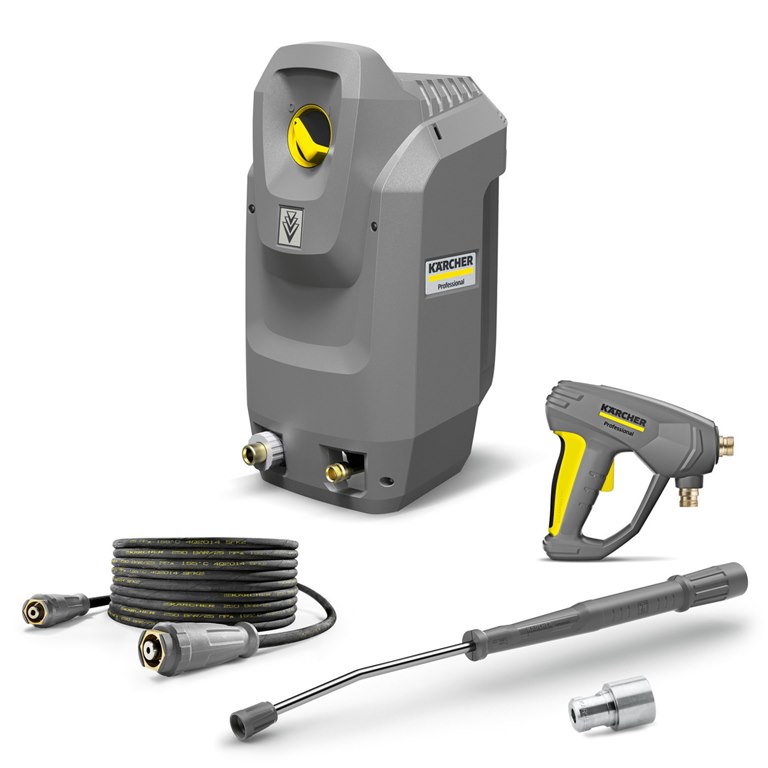

High Pressure Cleaner HD 7/12-4M St Accessory Pack.
The stand-alone pump unit out of the HD Middle class is the perfect solution for integrated high-pressure pumps e.g. stationary machine and production progress. A reliable high-pressure pump which is protected by a robust plastic chassis and not more. The machine is intended for stationary use and can be mounted and operated both horizontally and vertically. A 3-point support on the back enables vertical or horizontal mounting. Access to the high-pressure pump and the electronic components is easy and therefore service-friendly – the pump itself is effectively protected from dirt in reclaim water by means of a large water fine filter.
Features and benefits
High-quality equipmentAutomatic pressure relief for protecting the components extends their service life. High-quality brass cylinder head.
Flexible operationDesigned for upright and horizontal operation.
Easy servicingEasy access to the cylinder head when the bottom of the machine is opened. Fast access to the electrical box through simple removal of the cover. Large, easily accessible water fine filter for protecting the pump against dirt particles in water.
Increased energy efficiency
- Newly developed 3-piston axial pump with considerably reduced flow and pressure losses.
- 20 percent increase in cleaning performance and energy efficiency.
|Current type (Ph/V/Hz)
|1 / 240 / 50
|Flow Rate (l/h)
|Water feed temperature (°C)
|Operating pressure (bar/MPa)
|120 / 12
|Max. Pressure (bar/MPa)
|180 / 18
|Power rating (kW)
|Power cable (m)
- Pressure switch control
