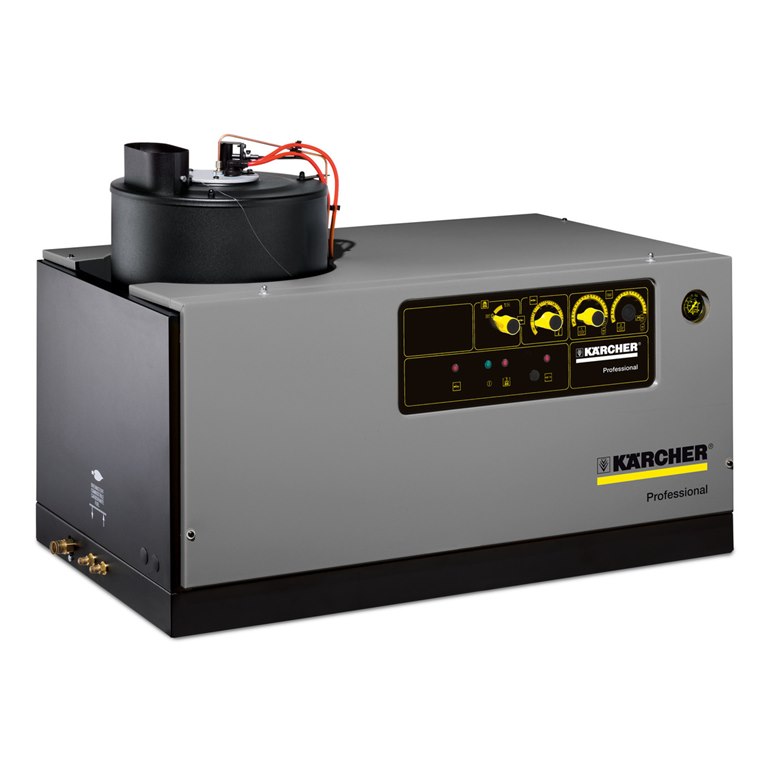

High pressure cleaner HDS 9/14-4 ST
Product Code: 16989170
SKU: 1.698-917.0
£5,999.70 exc. VAT
Select Type
The HDS 9/14-4 ST Eco stationary high-pressure cleaning system offers an extraordinarily high level of safety with its outstanding pressure relief, flue gas temperature monitor, innovative dry run cut-out in the float tank (protecting the pump) and the soft dampening system that reduces vibrations therefore extending the life of the unit. Ideal for cleaning applications where cleaning and disinfecting have to be done regularly to high standards such as in the food industry or in sanitary areas. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.
Specifications
Technical data
Current type (Ph/V/Hz) | 3 / 400 / 50 |
Flow rate (l/h) | 500 - 930 |
Operating pressure (bar/MPa) | 30 - 140 / 3 - 14 |
Max. temperature (°C) | 155 - 80 |
Power rating (kW) | 6.4 |
Consumption fuel oil (kg/h) | 5.8 |
Fuse protection (A) | min. 16 |
Weight (kg) | 140 |
Dimensions (L x W x H) (mm) | 1110 x 565 x 690 |
Number of users | 1 |
Equipment
- SDS system
- System pressure relief
- Flame monitor
- Ready for Servo Control
- Ready for remote control
